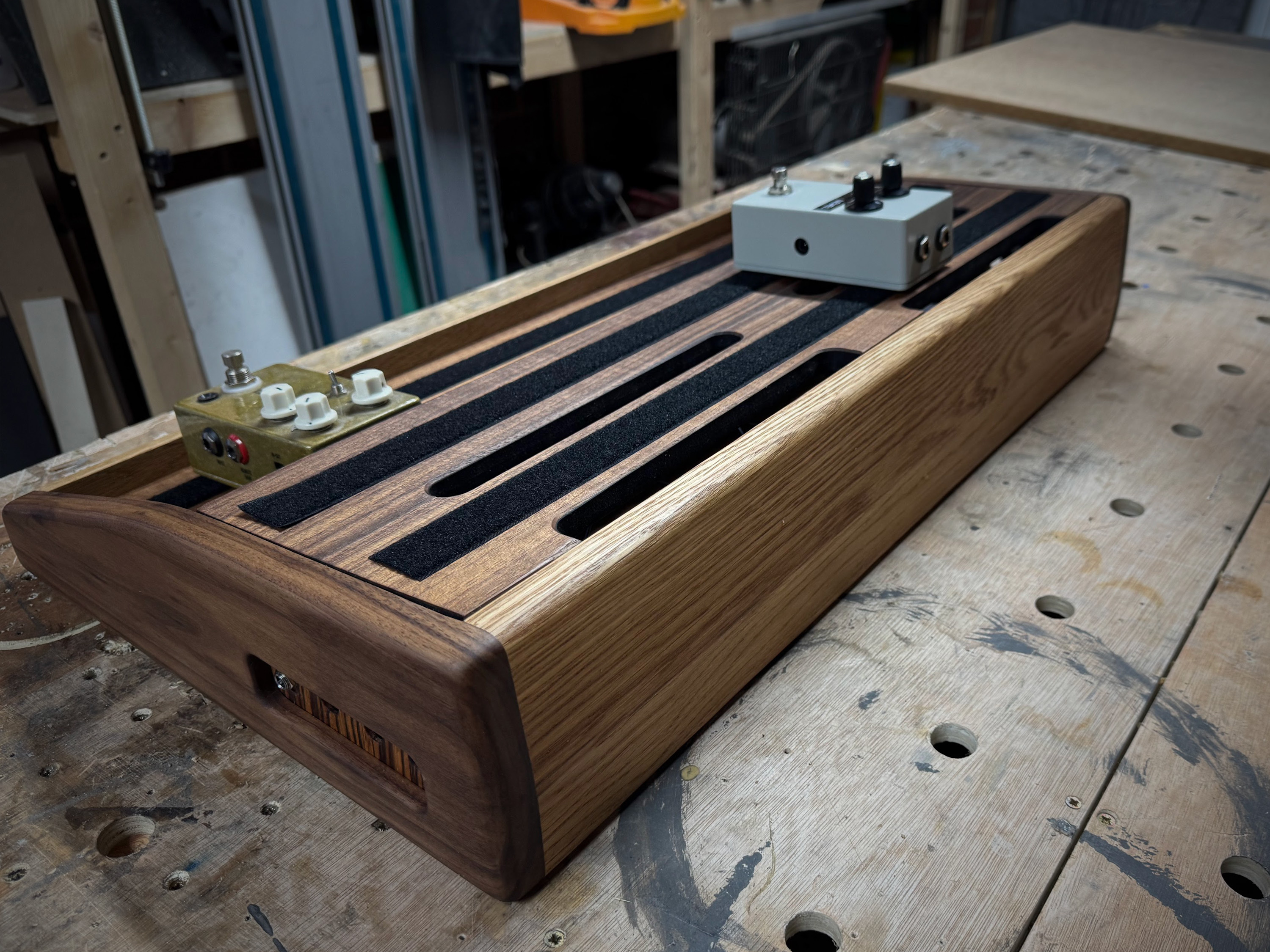

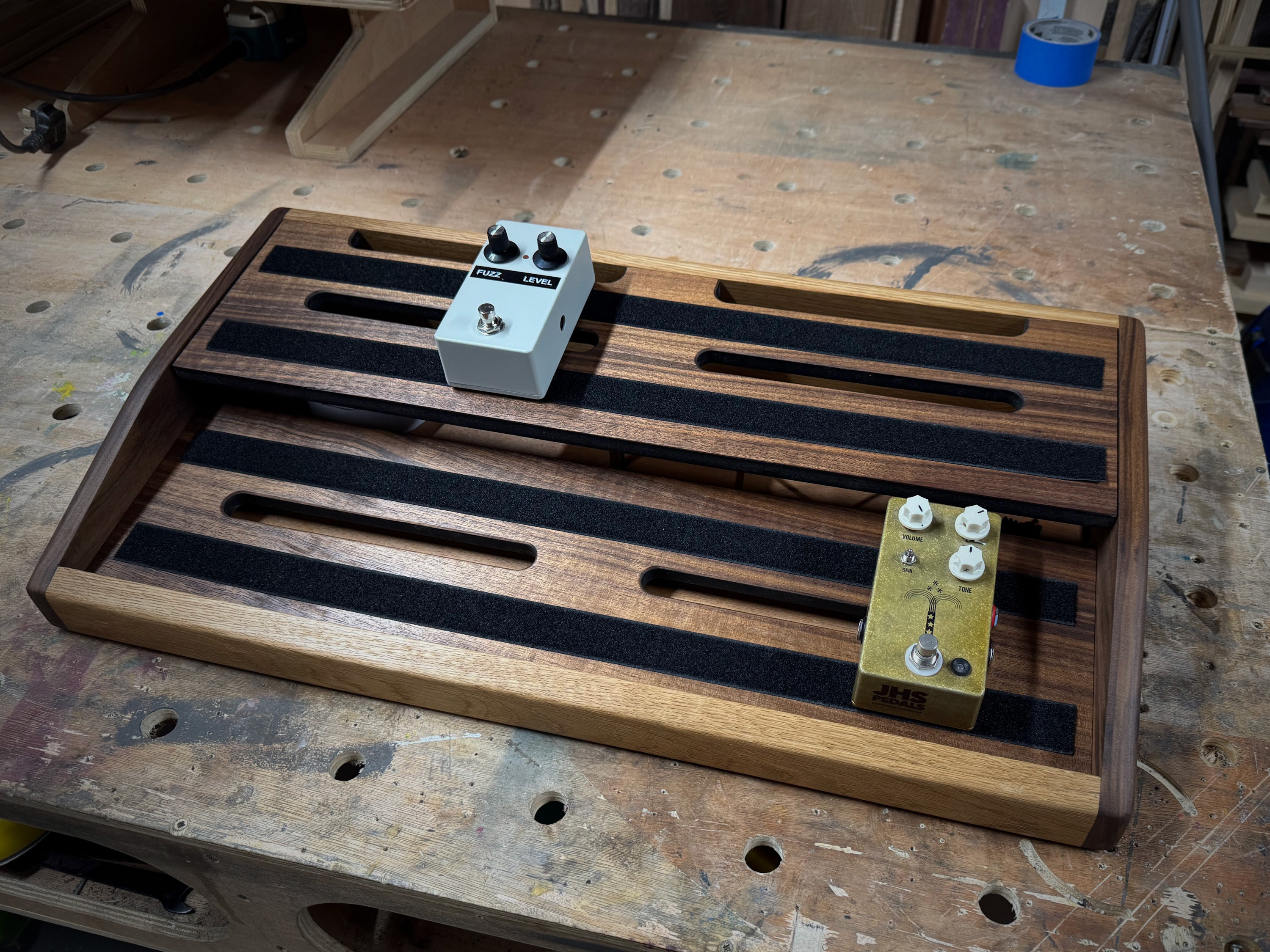

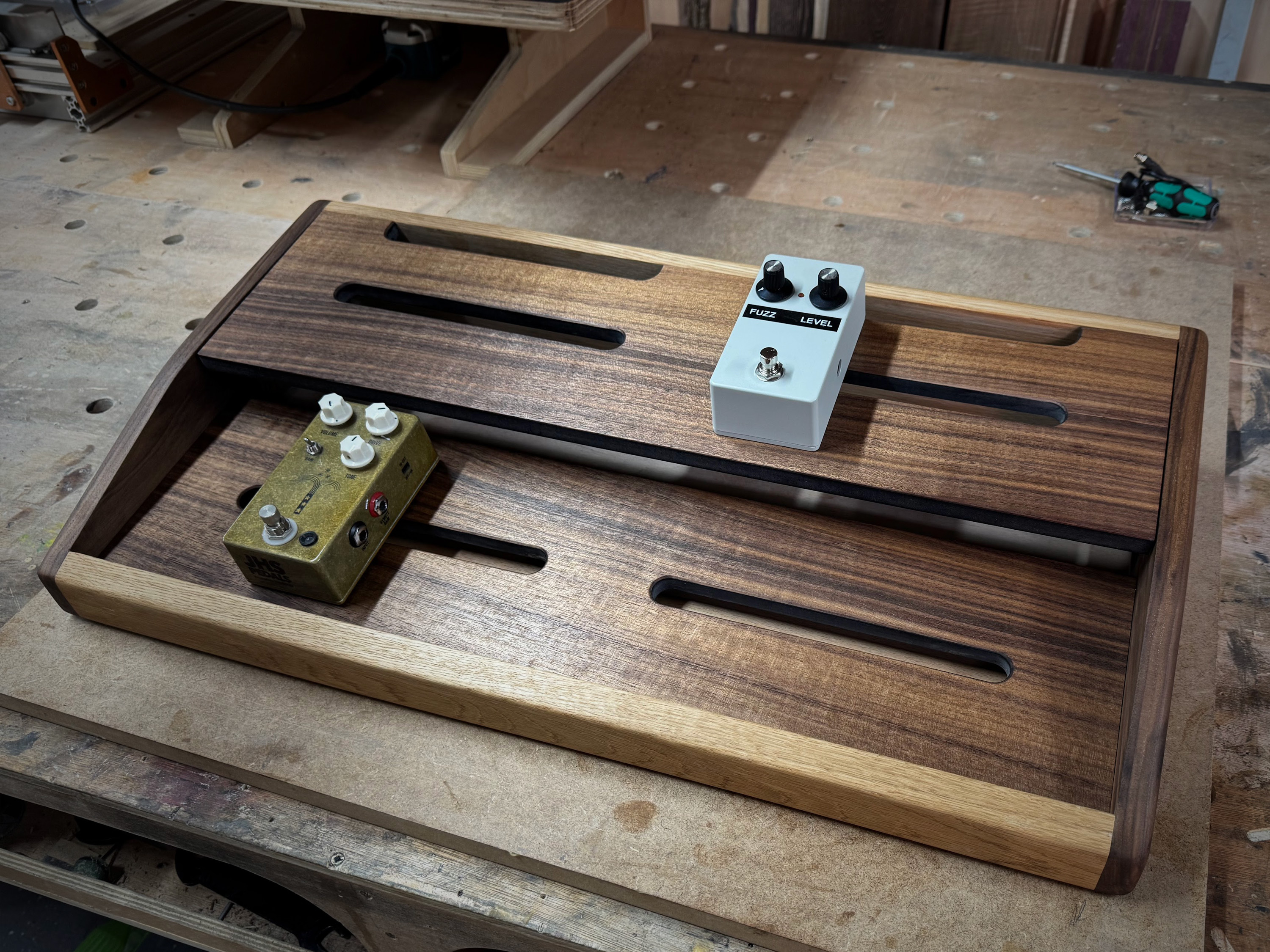

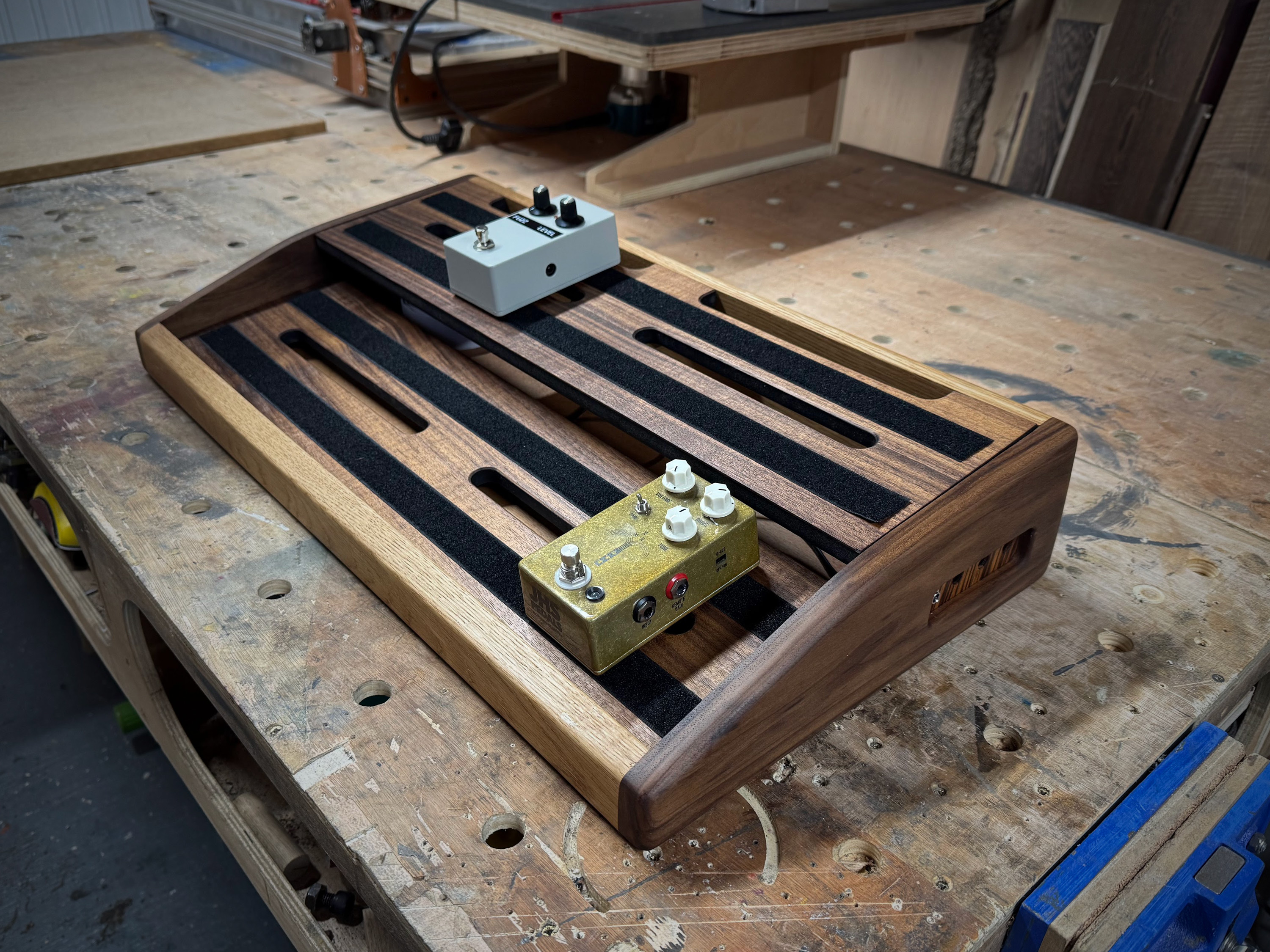

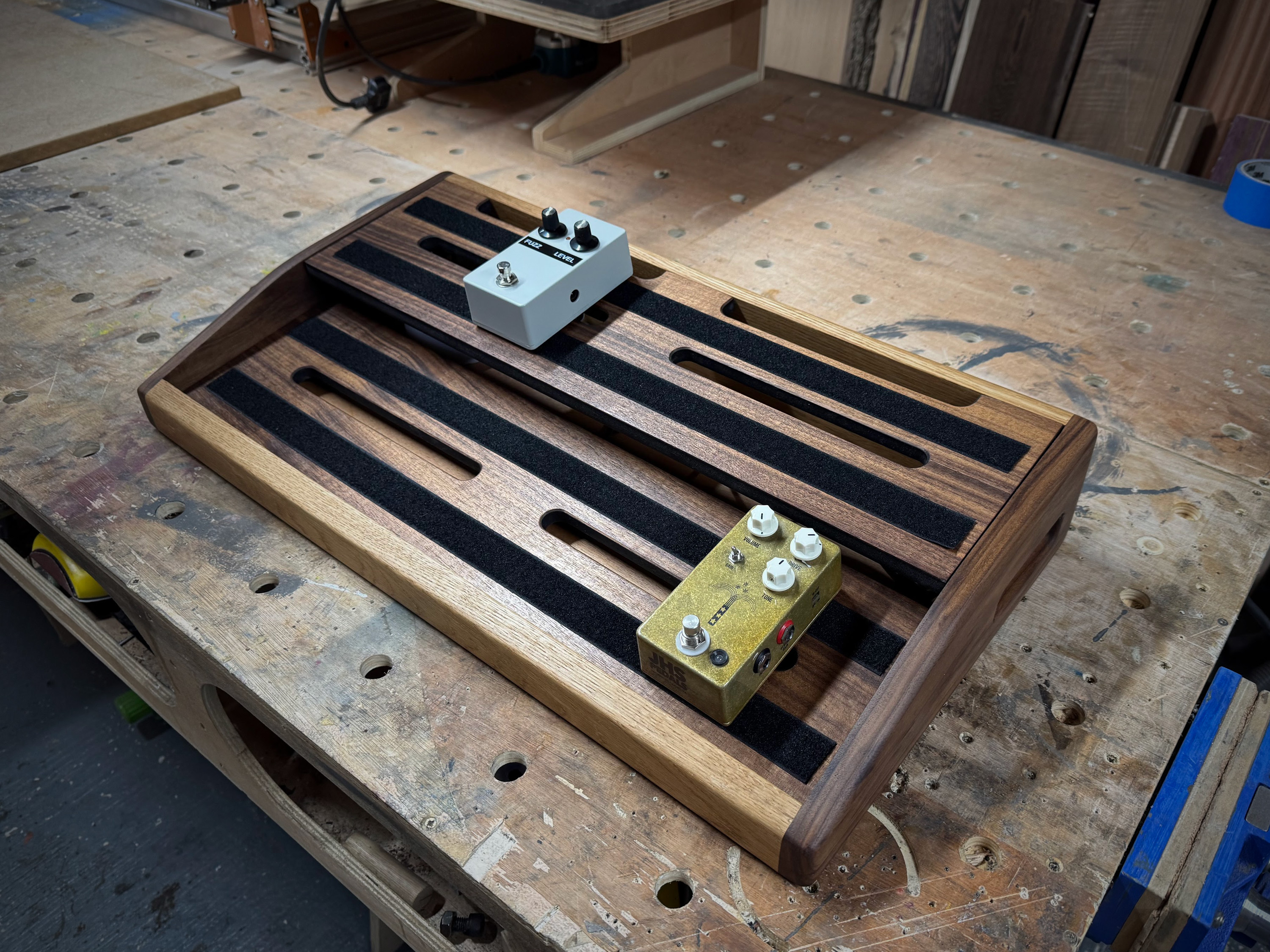

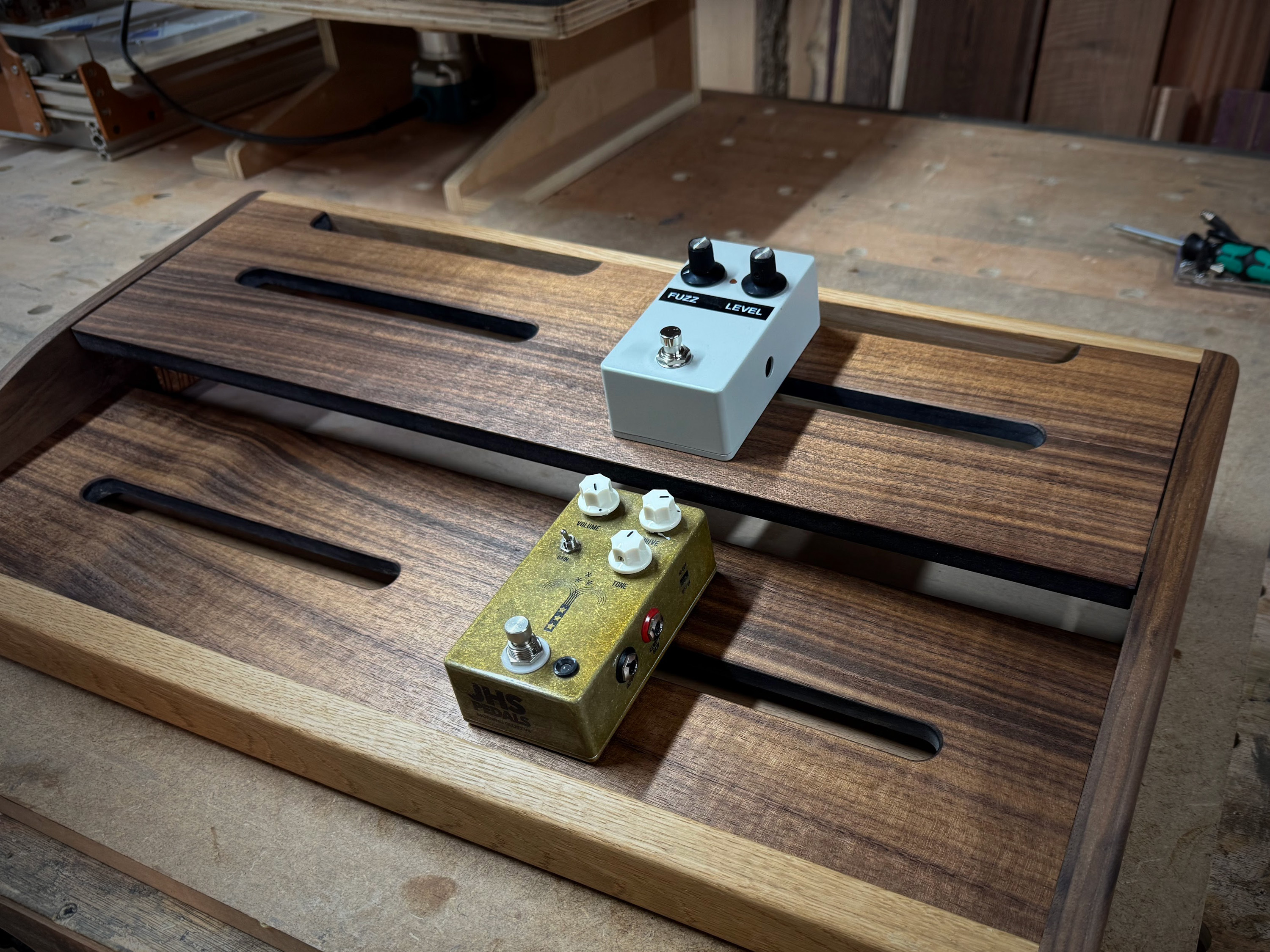

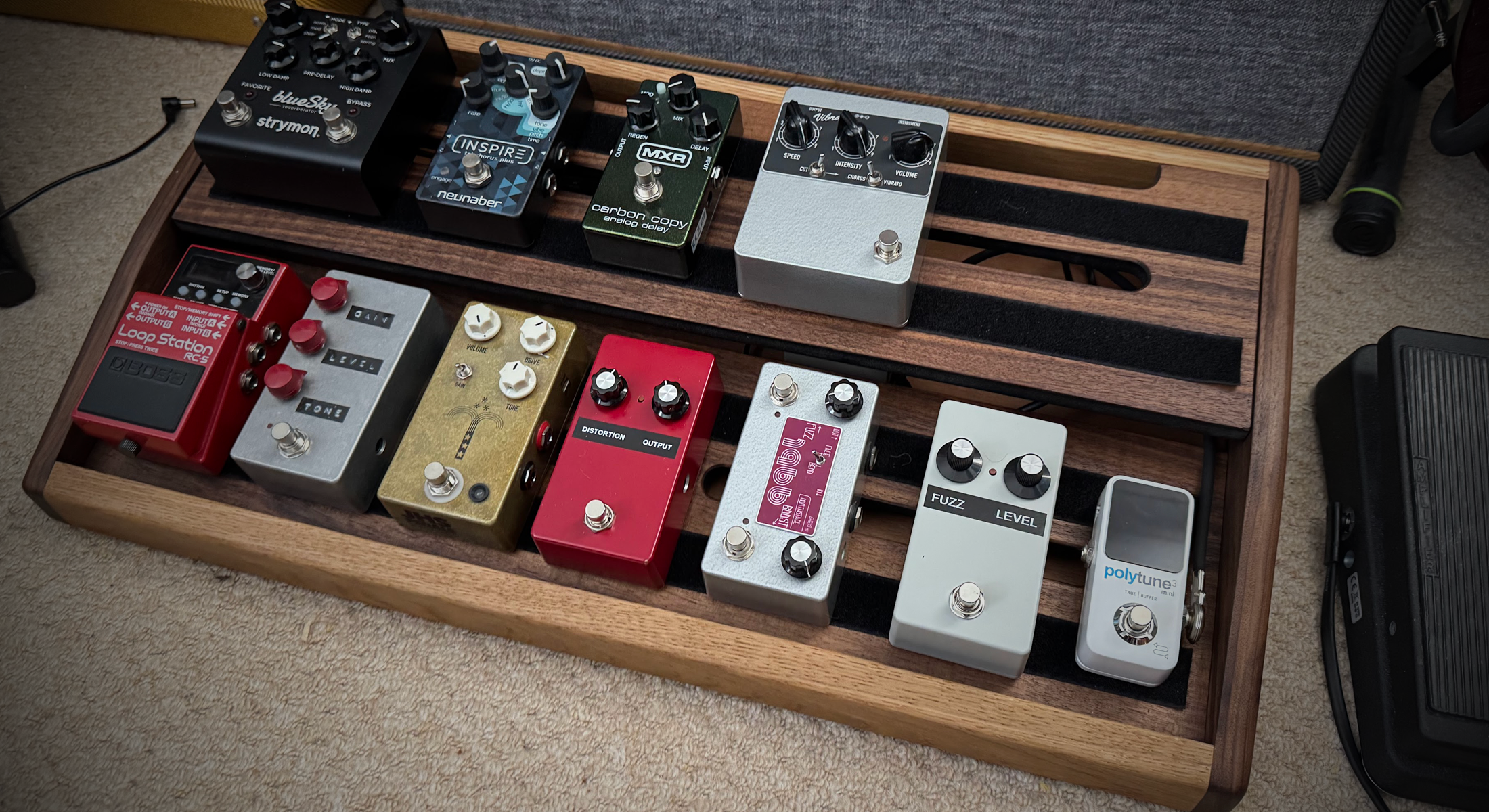

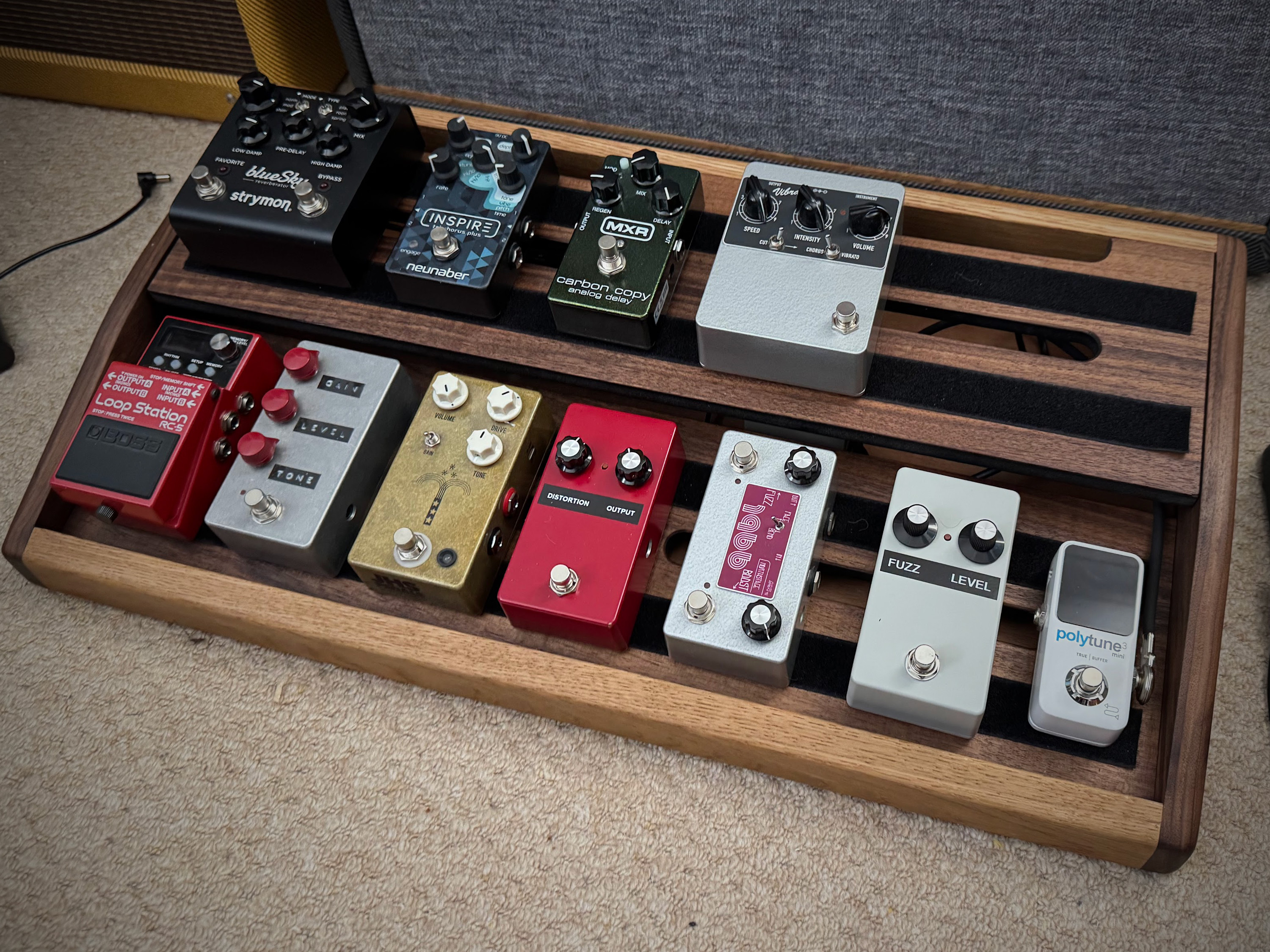

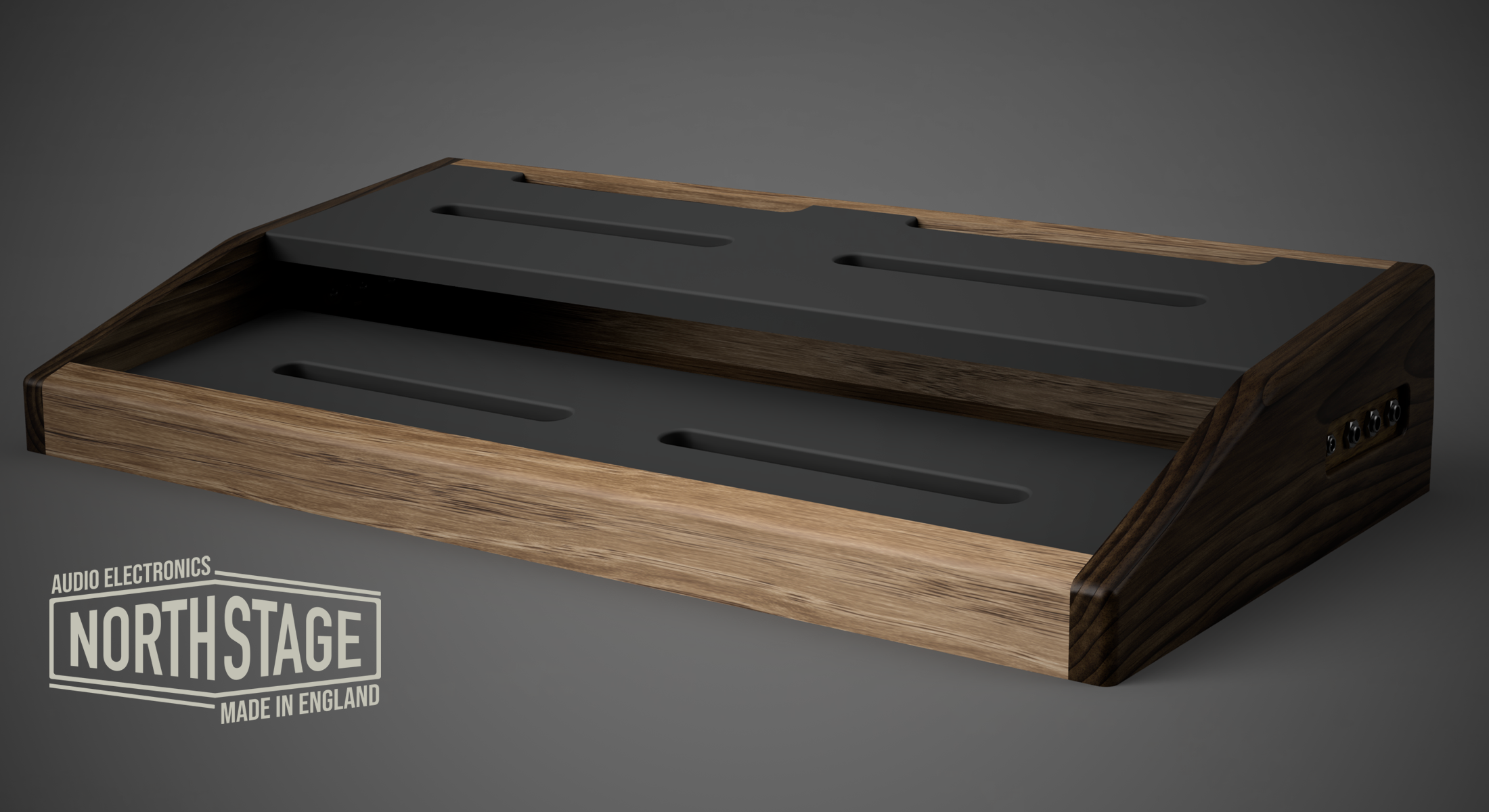

I love guitar pedals and wanted to build a pedalboard for myself that was not only was extremely aesthetically pleasing but also functional, making it easy to swap out pedals with all the wiring readily available but hidden.

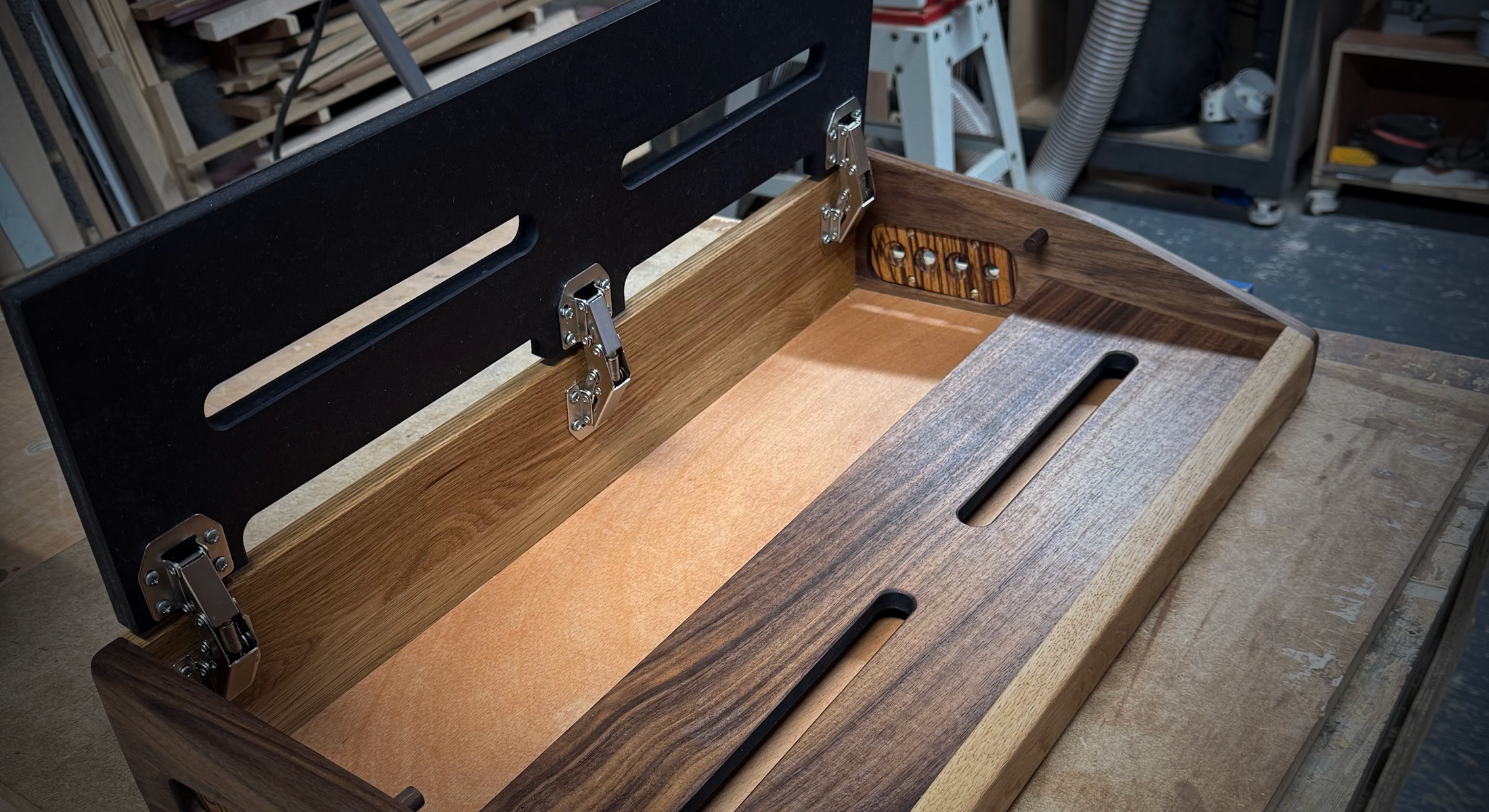

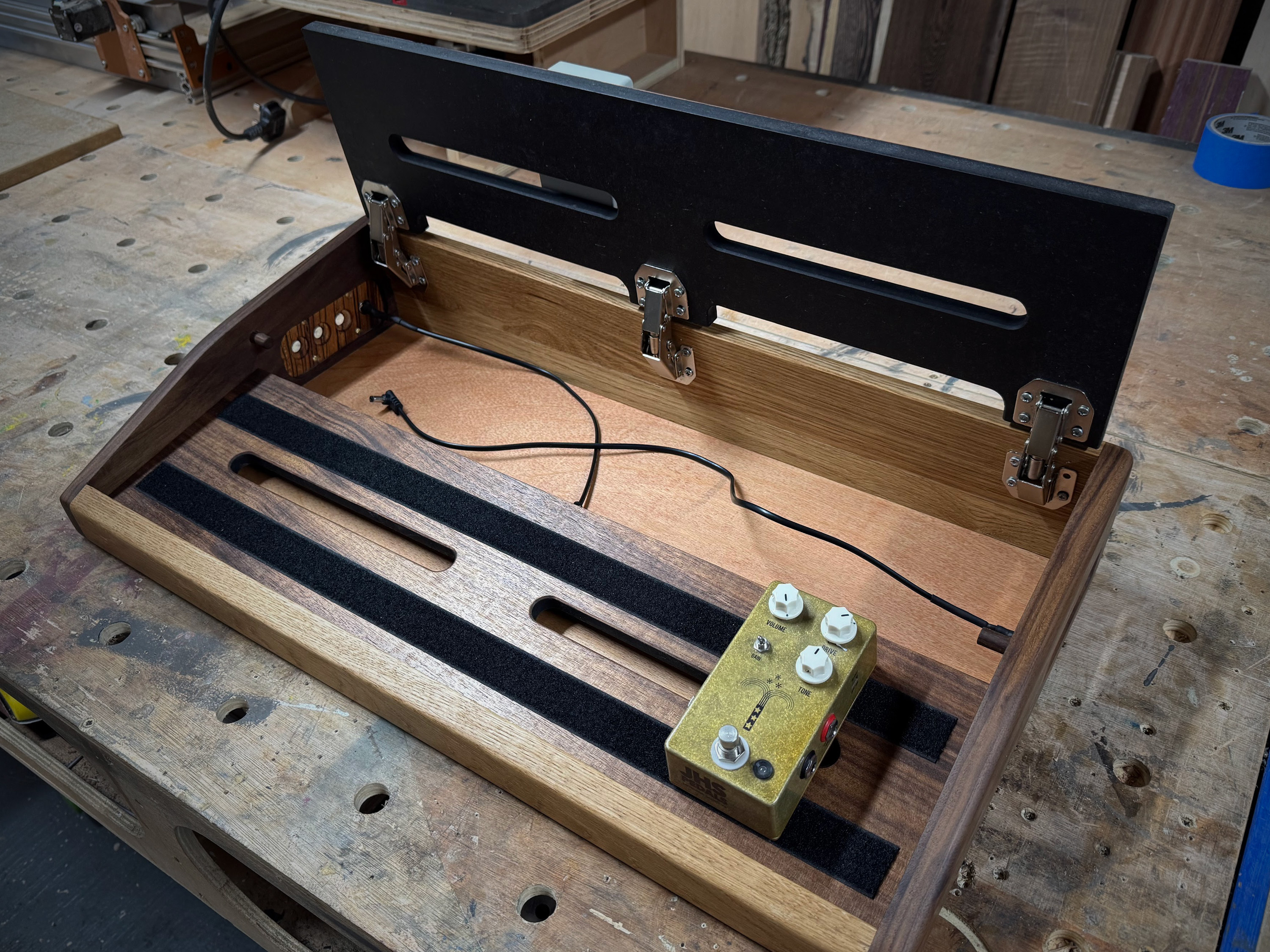

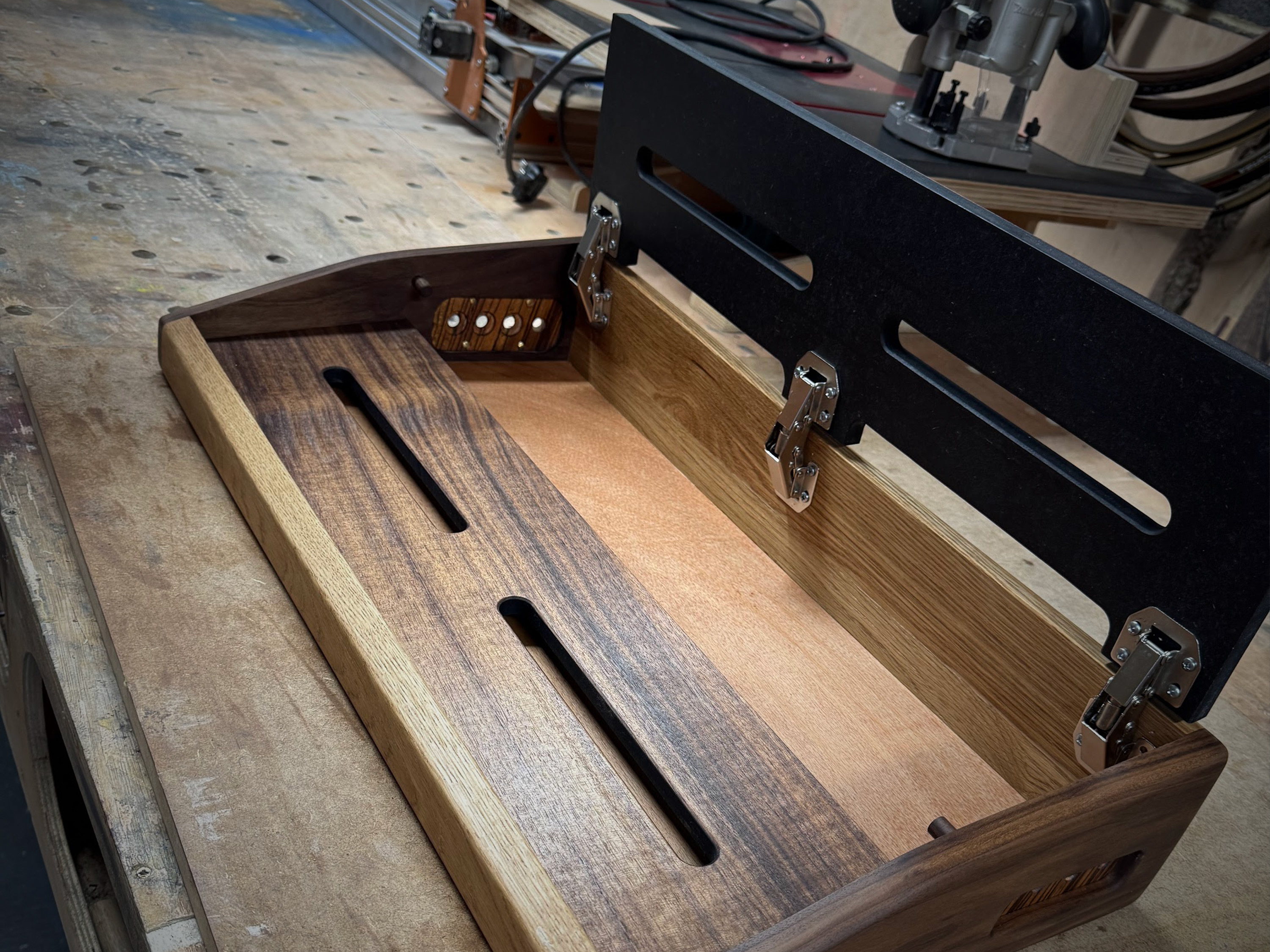

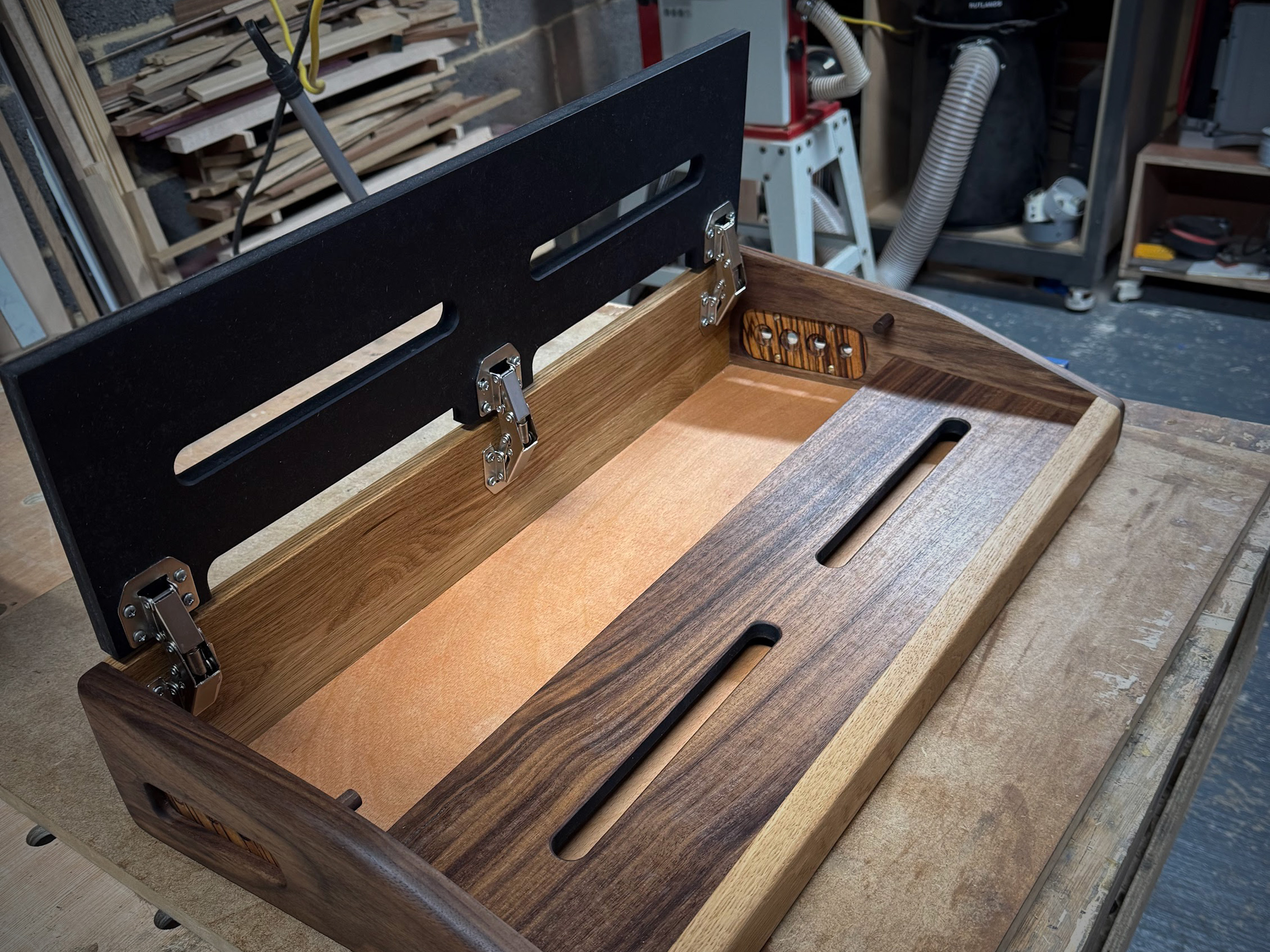

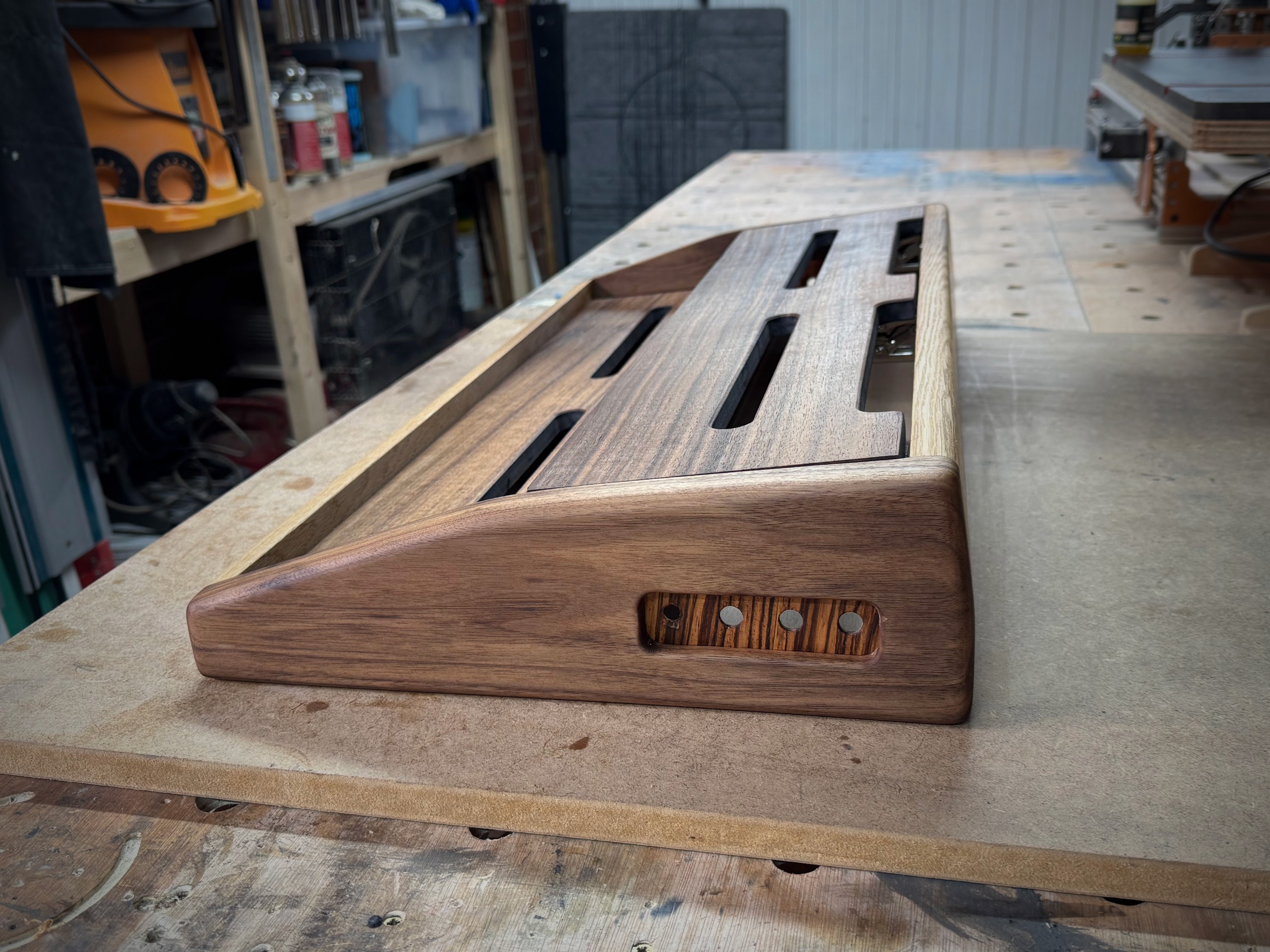

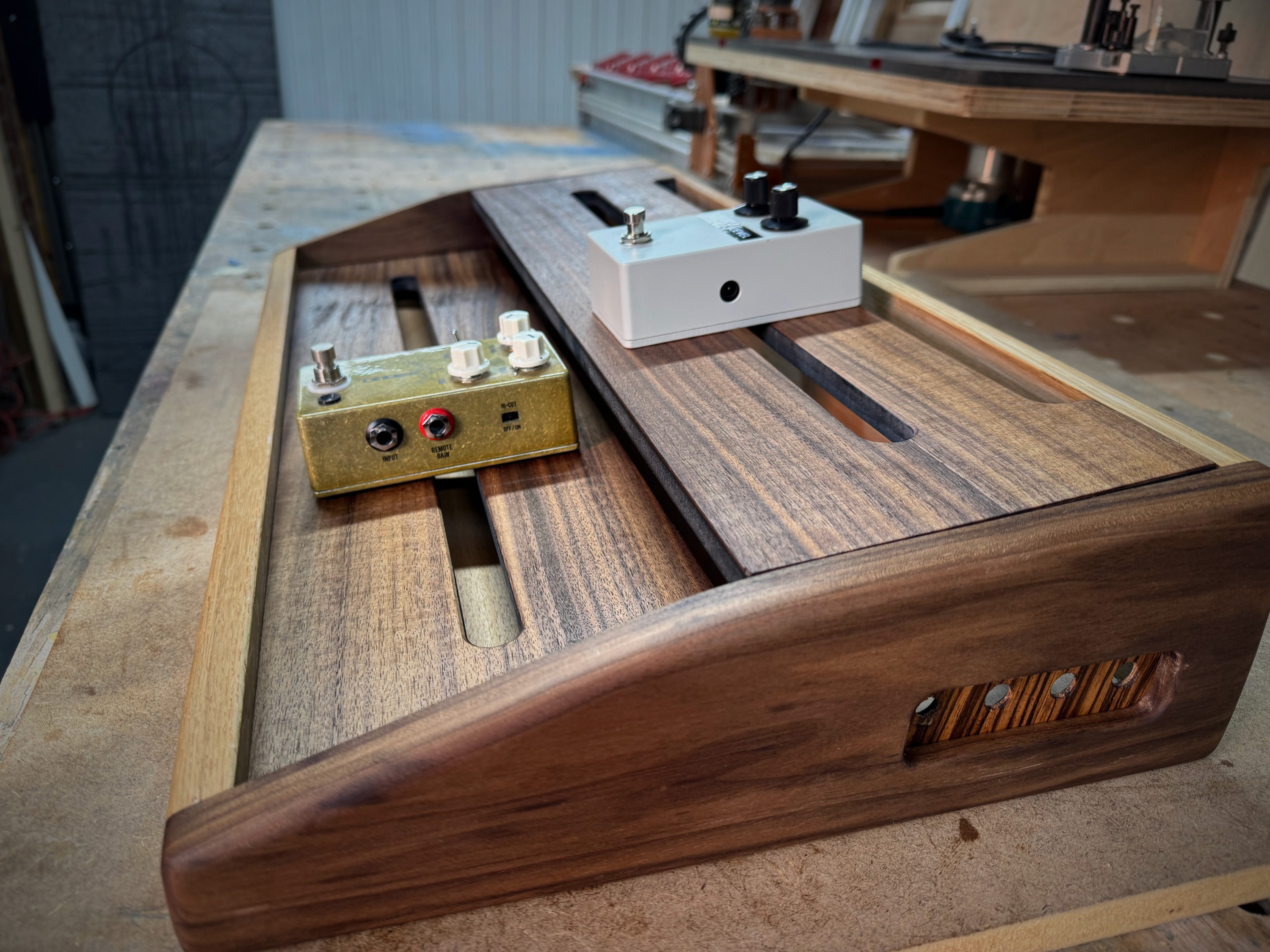

The main design feature was to have a hinged upper shelf to provide access to the power supply and wiring. I wanted to have different combinations of sockets on both sides for both power and signal in and out. For the prototype I chose to have the primary input on the right, next to the send/return signal with DC socket so I could add additional pedals, for example a Wah pedal. On the left is a dual out with DC power in socket. All sockets are connected to small insert boards so I can easily swap different configurations.
