1966 Prototype

The 1966 pedal was inspired by three of my favourite vintage pedals from the 1960s. London 1966, Arbiter Electronics released the Fuzz-Face pedal. That same year Sola Sound released the three transistor version of the Tone-Bender and the previous year, Dallas released the Rangemaster treble boost.

When I started designing this pedal, I only set out to create a modern Fuzz circuit using negative GND and silicone transistors for better stability, but get it to sound as close as to a vintage Germanium fuzz tone as possible. As this evolved, I realised by adding a switchable gain stage in front of the Fuzz circuit, I could switch between a Fuzz-Face and Tone-Bender tone. At the same time I was working on an inverted Rangemaster circuit and found they worked really well together so decided to put them both into one pedal.

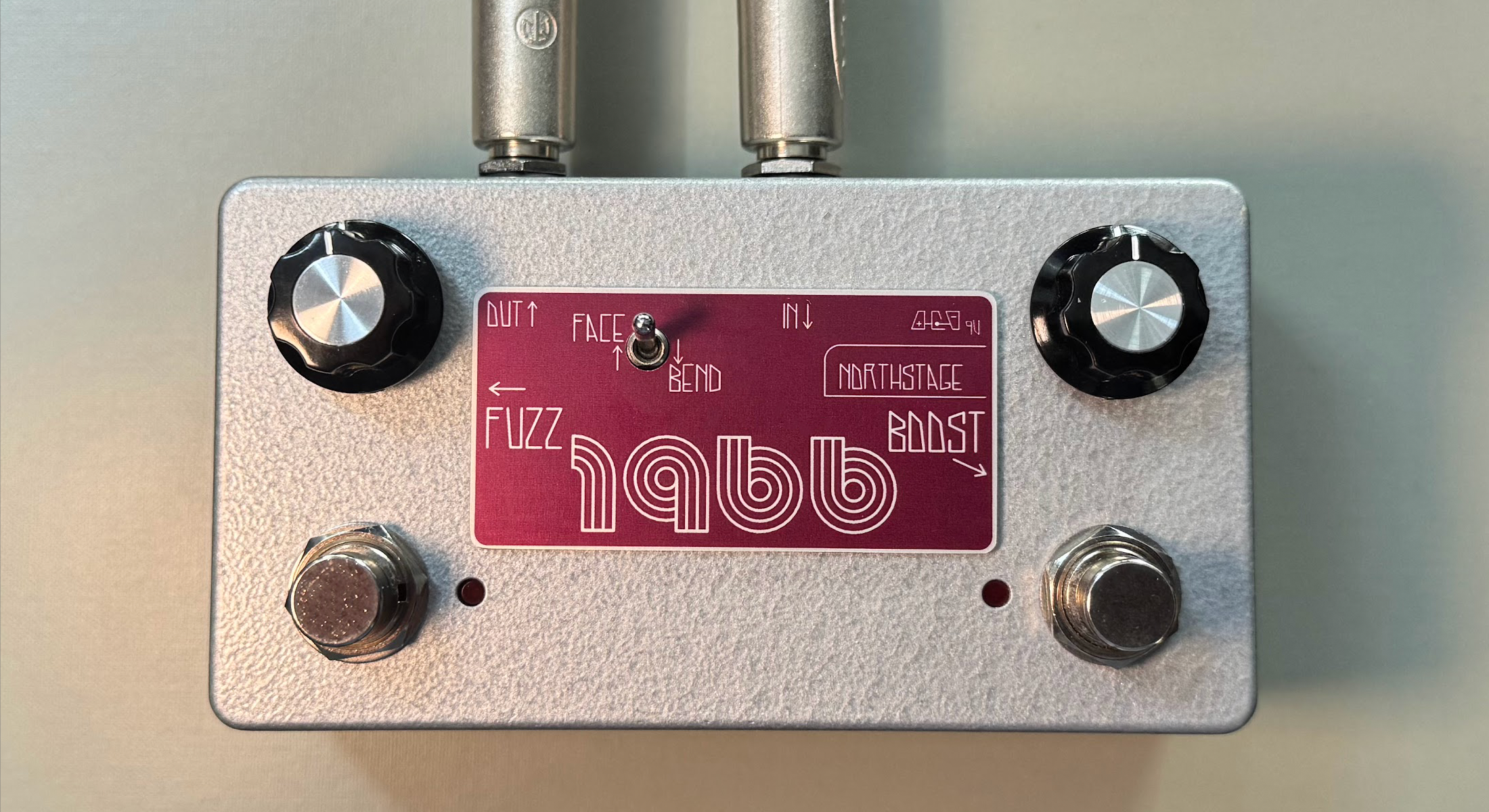

1966 Prototype Pedal

Specifications

  • 2x foot-switches: Fuzz & Boost
  • 2x Level controls: Fuzz & Boost
  • 1x Toggle switch: FF or TB
  • 9V (Center GND) power socket
  • Horizontal format for space optimisation
  • Designed for power supply only

Features

  • Modern circuit with very low noise floor
  • Authentic sounding vintage Fuzz and Boost
  • Impedance sensitive: Fuzz gain controlled by guitar volume
  • Profession manufactured PCB
  • Hand-populated and soldered components
  • Extremely high quality components

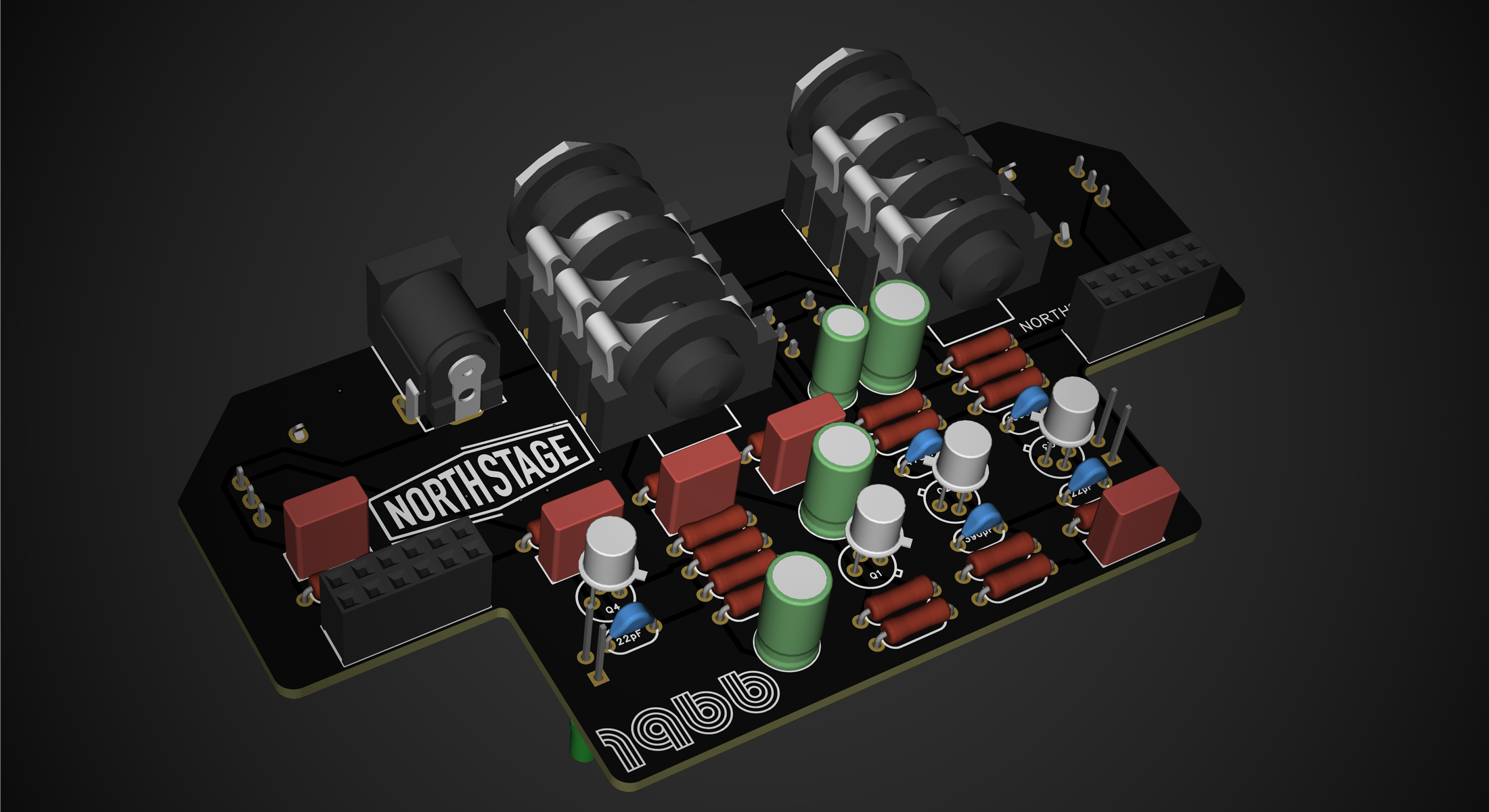

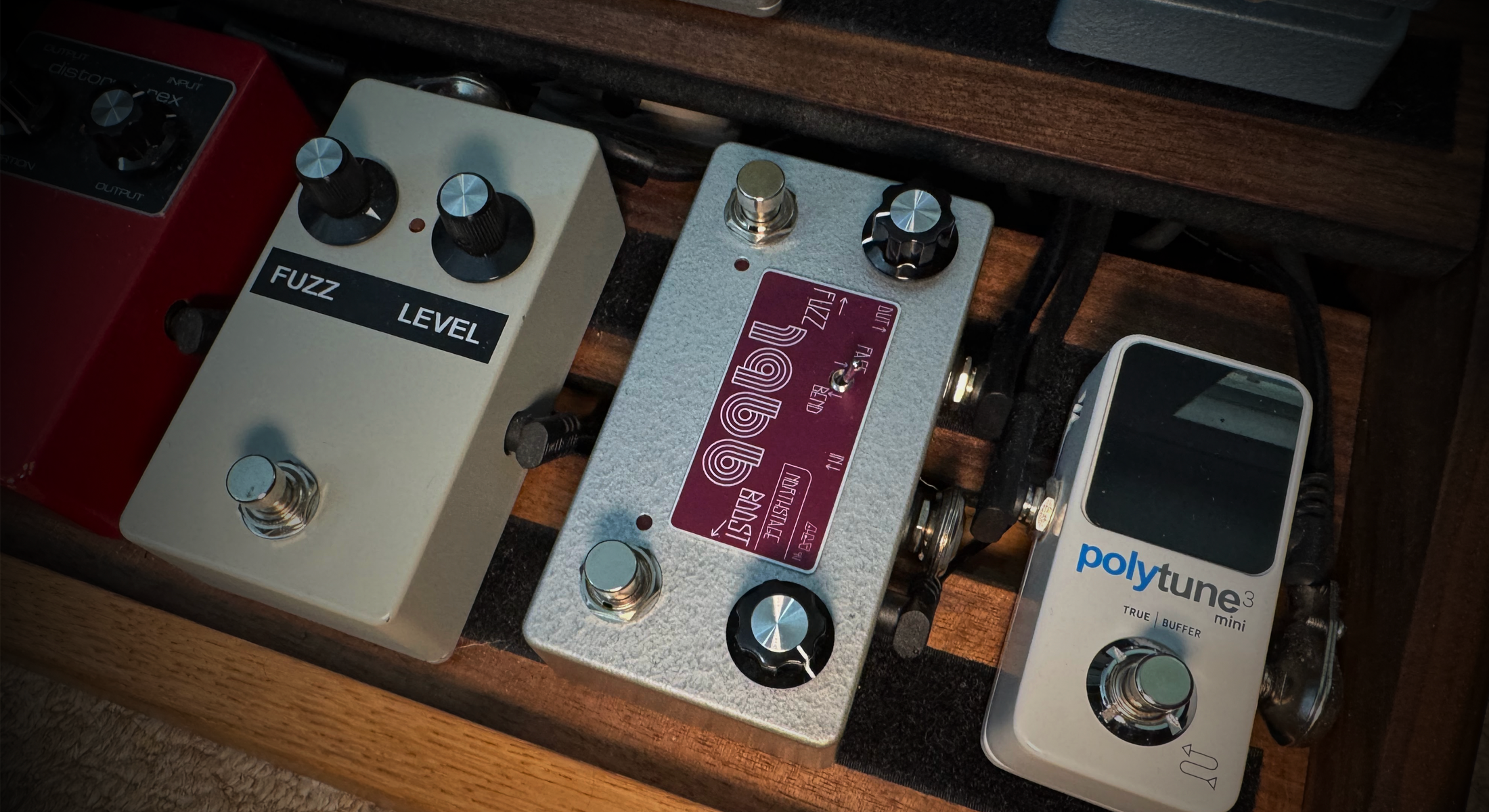

1966 Prototype Build Gallery
